BY250X
BY250 Serial
 |  |
| BY250S | BY250X |

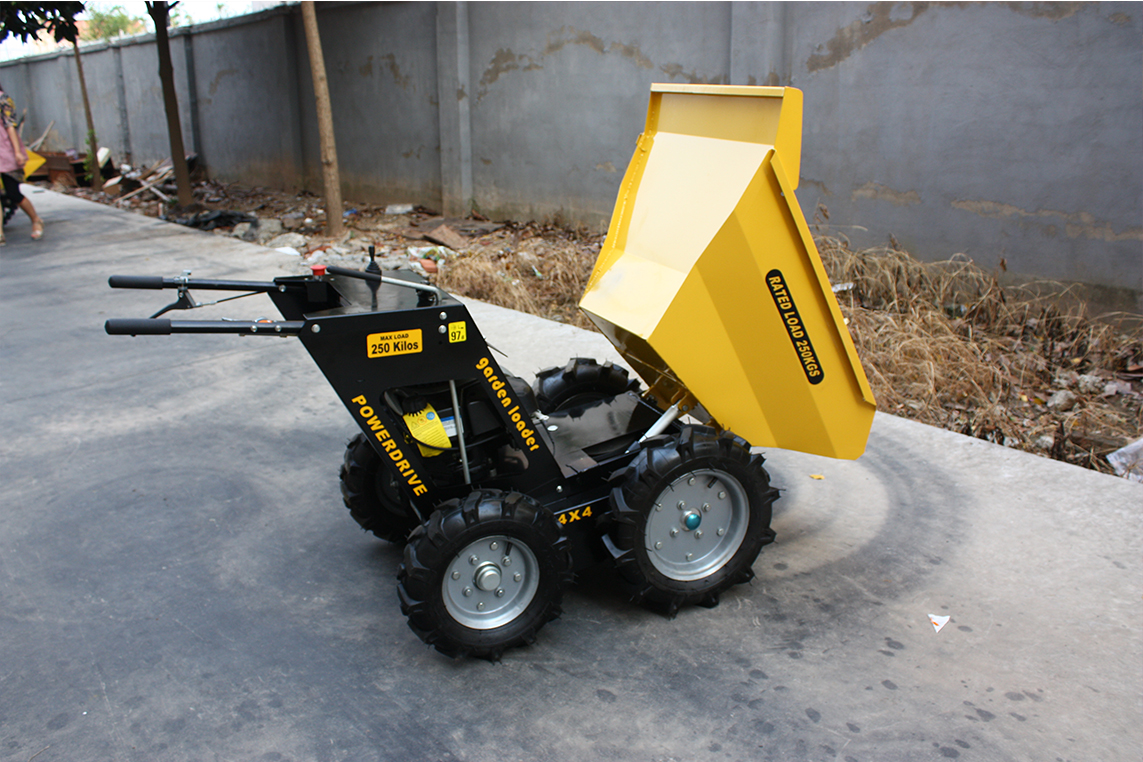

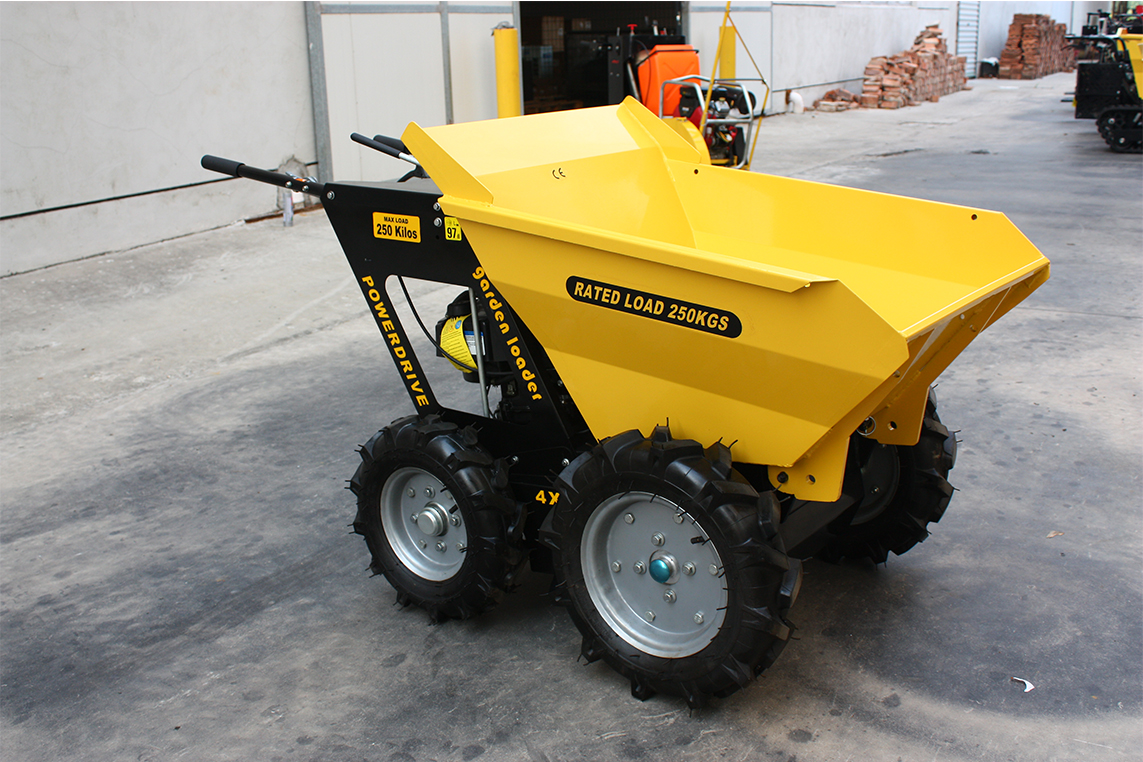

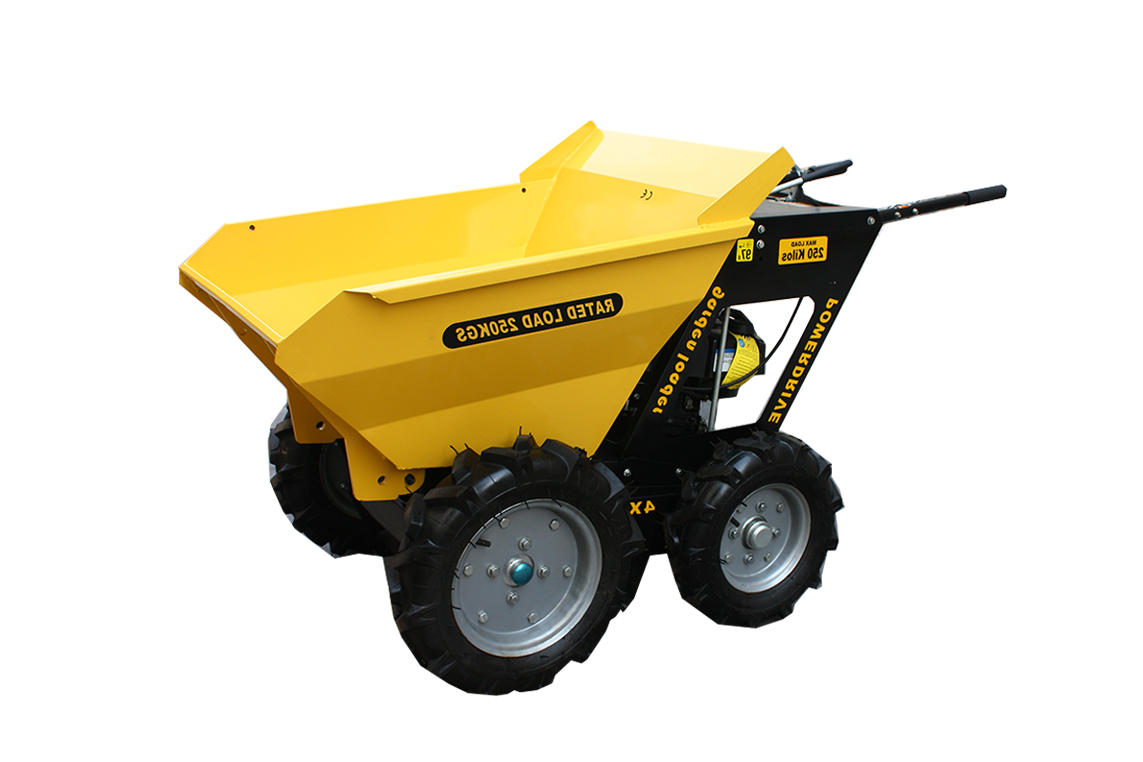

The Mini dumper BY250X can carry 250kgs/550lbs/6cu ft and will climb a 30º slope fully loaded. The machine is fitted with the Honda GXV Commercial grade 5.5hp engine only. The Tecumseh drive axle has 3 forward and 1 reverse gears.This model is self-unloading by battery,also we have handle start and electric start for your choice.
In action! Photos and Videos
Details
 |  |  |  |
| Chain Drive | Electric Putter | Shift Lever | Emergency Stop |
| Switch |
Attachments/Accesorios
 |  |  |
| GRASS TIRE | SOLID TIRES | DOUBLE TIRES |
| FREE MAINTENANCE |
Technical Data Sheet
| Description | BY250S | BY250X |
Weight kg(lb)  | 121(267) | 121(267) |
Dimension mm(in)  | 1280*720*1070 | 1280*720*1070 |
Engine  | Honda GXV160 5.5HP | Honda GXV160 5.5HP |
Transmission  | 4 forwar/1 reverse speed | 4 forwar/1 reverse speed |
Loading weight kg(lb) | 250(551) | 250(551) |
Drum material  | Hot dip galvanizing or Plastic- spray | Hot dip galvanizing or Plastic- spray |
Driven  | Chain driven or Wheel driven | Chain driven or Wheel driven |
Unloading  | Manual | self unloading |
We reserve the right to improve or withdraw the specification or products without prior notice.
