BY600S
BY600 Serial
 |  |  |  |  |  |
| BY600 | BY600-3S | BY600-6 | BY600L | BY600S | BY600W |

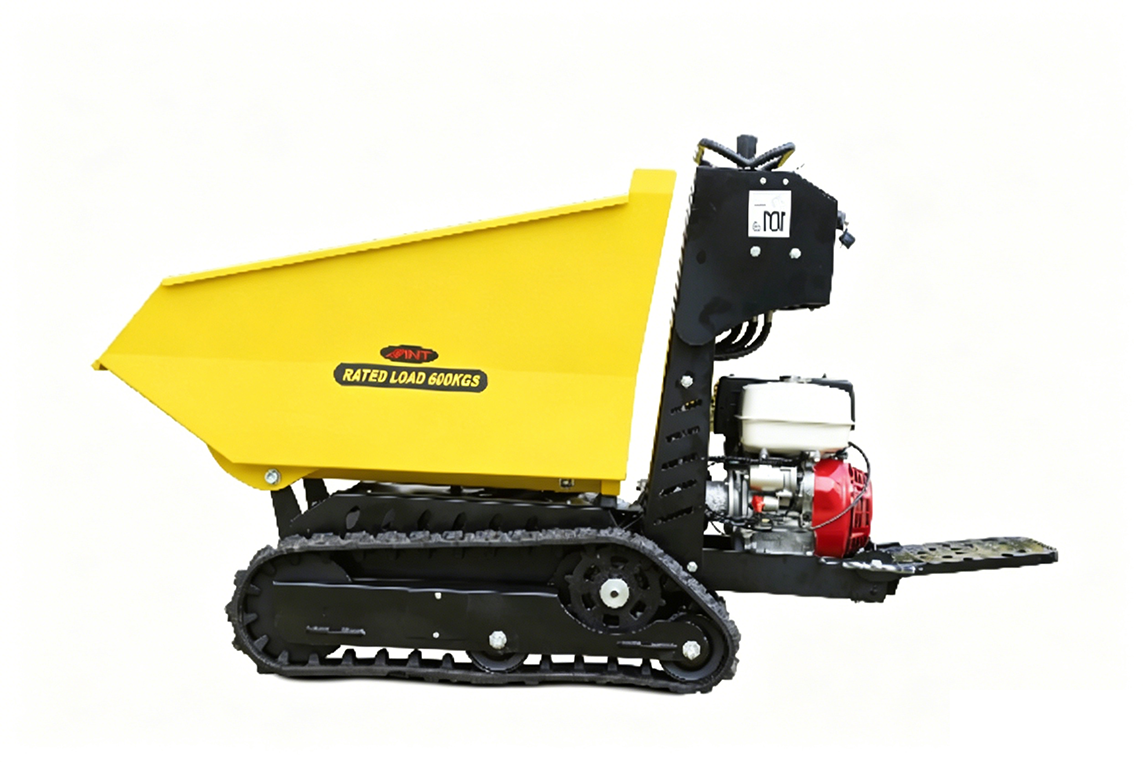

With the 60 series it is possible to safely carry 600kg; Incredibly robust, beautiful to look at, and above all very reliable. The shape of this tracked conveyor is just one of its peculiarities,in fact under the guise it conceals a compact frame and highly resistant to the hardest work, a well-designed undercarriage to channel mud and soil materials to the outside of the machine, the lifting body and a compactness of the machine that allows the passage inside the doors of the house.
In action! Photos and Videos
Details
|
|
|
|
| PULL THE PLATE | SPROCKET | CYLINDER | FORWARD AND |
| BACKWARD FILES |
Operation Pictures
Technical Data Sheet
| Description | BY600 | BY600-3S | BY600-6 | BY600L | BY600S | BY600W |
Weight kg(lb)  | 400（882） | 285(628) | 320(145) | 538(1186) | 285(628) | 489(1078) |
Dimension mm(in)  | 2460*900*1480 | 2050*750*1300 | 2050*1150*1350 | 1900*850*1300 | 2050*750*1300 | 1900*850*1480 |
Engine  | Honda GX390 13.5HP | Honda GX390 13.5HP | Honda GX200 6.5HP | Honda GX390 13.5HP | Honda GX390 13.5HP | Honda GX390 13.5HP |
Transmission  | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission | Hydraulic transmission |
Loading weight kg(lb) | 600(1322) | 600(1322) | 600(1322) | 600(1322) | 600(1322) | 600(1322) |
Drum material  | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
