BY800M
BY800 Serial
 |  |  |  |  |  |
| BY800 | BY800L | BY800S | BY800W | BY800M | BY800MIX |

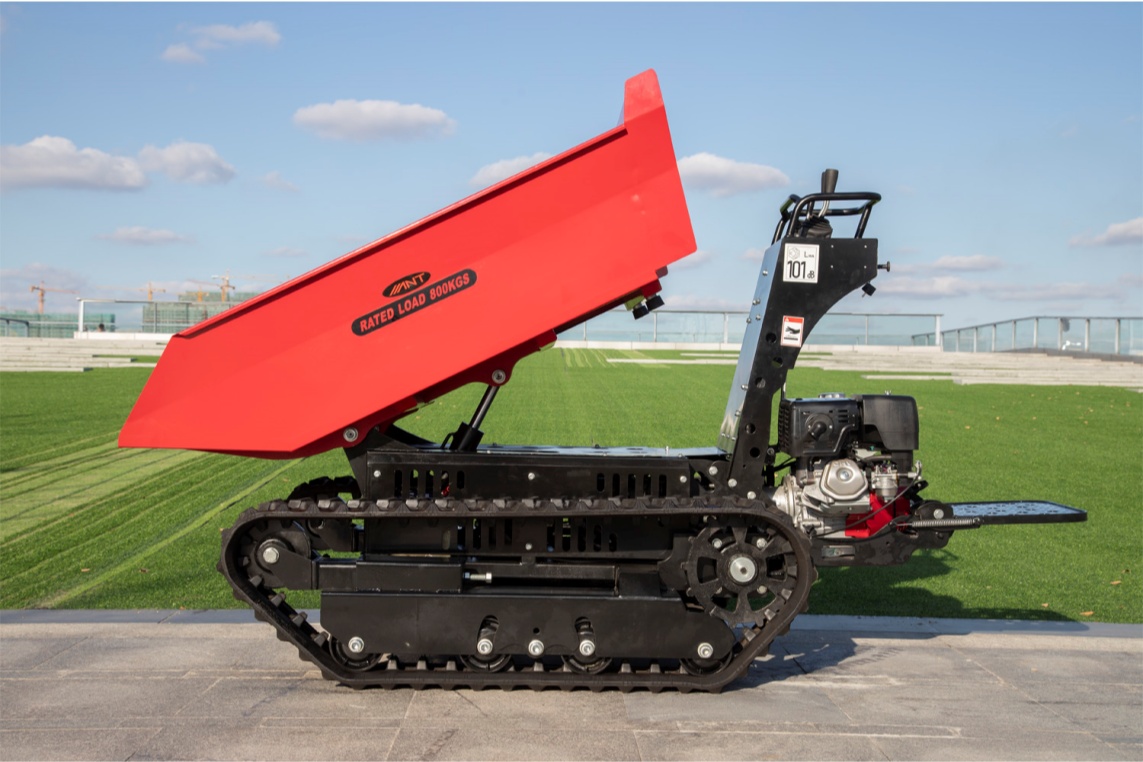

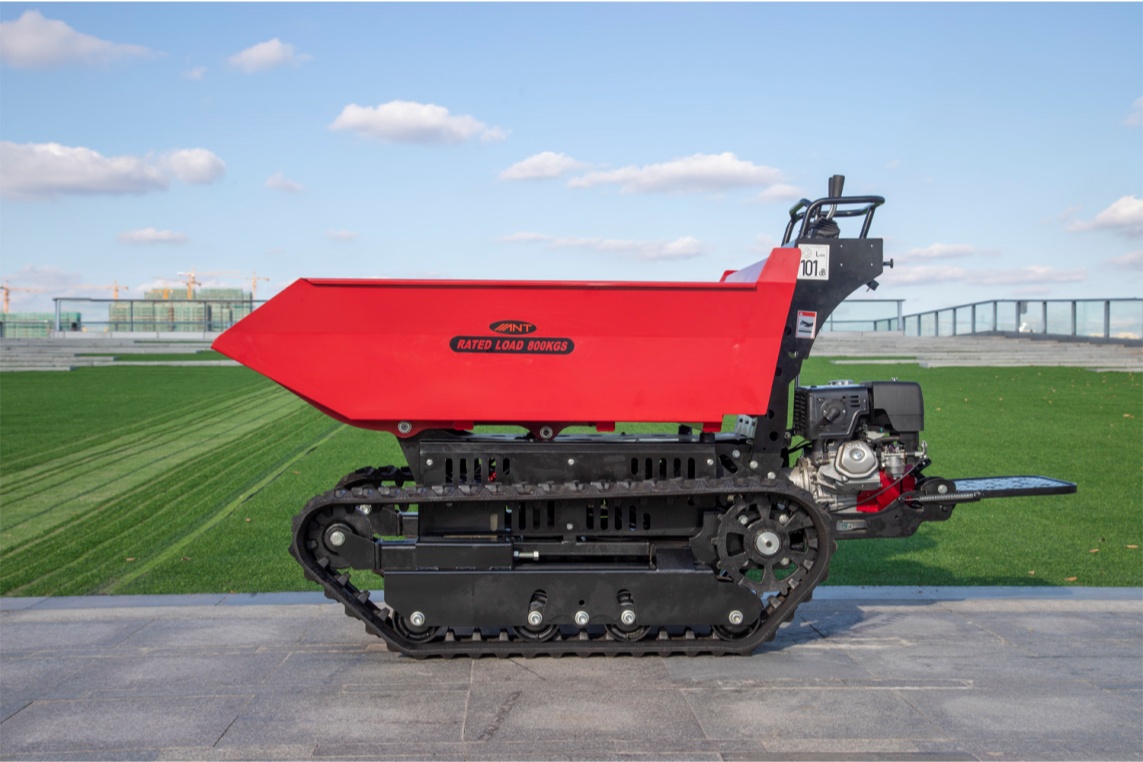

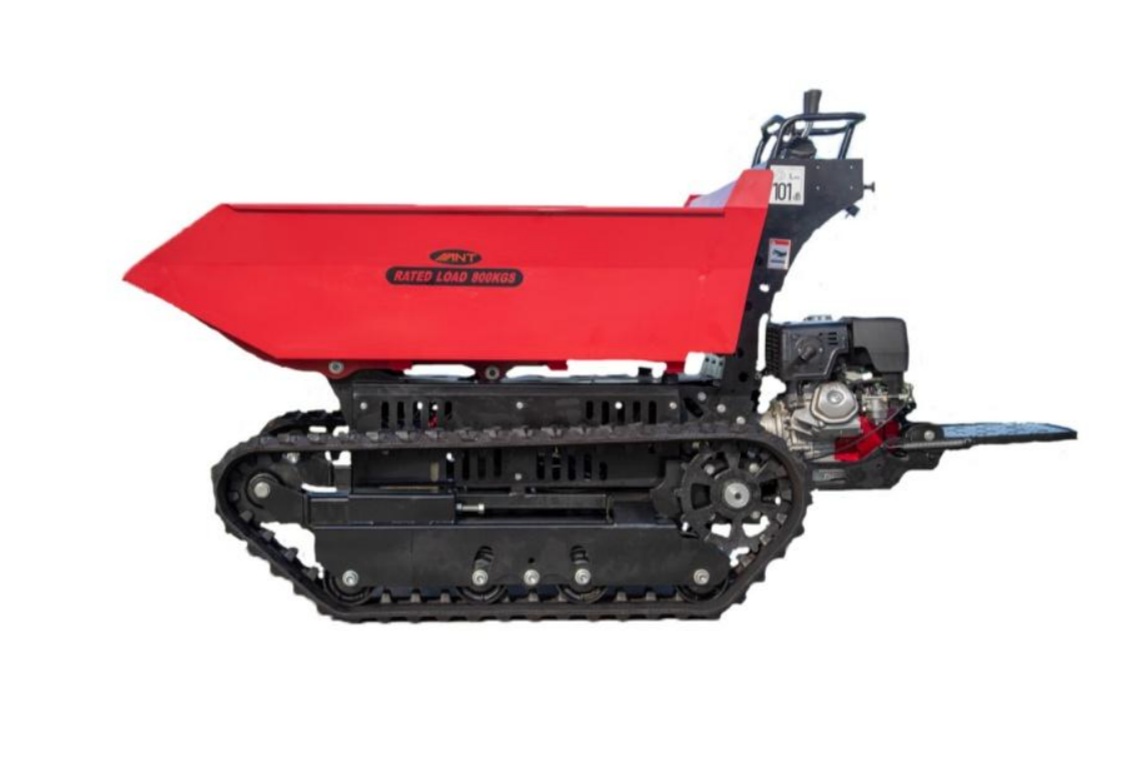

This model is mechanical design and crawler driven. The max loading weight is 300kgs and the width is 74cm narrow. It's powerful for tough outdoor sites, carrying bricks, sand, stones, wood, crops, fruits around various sites. The track dumper has 6 forward gears and 2 reverse gears. The maximum speed is approx. 5.5km/h.
In action! Photos and Videos
Details
 |  |  |  |
| BUCKET SKIP | BUCKKET | BRAKE FRAMK | ELECTRIC START SWITCH |
 |  |  |  |
| HEAVY DUTY | SIGHT FUEL LEVEL | STANDING PLATFORM | TIMER RUBBER TRACK |
 |  |  |  |
| PISTIONS PUMPS | QUICK COUPLING | FILTER | ROCKING ROLLERS |
Operation Pictures
Technical Data Sheet
| Description | BY800 | BY800S | BY800W | BY800L | BY800M |
Weight kg(lb) | 650(1430) | 625(1375) | 600(1320) | 630(1389) | 520(1146) |
Dimension mm(in) | 2280*920*1200 | 2200*900*1250 | 2280*900*1250 | 2200*900*1250 | 2000*900*1400 |
Engine | Honda GX390 13HP | Honda GX390 13HP | Honda GX390 13HP | Honda GX390 13HP | Honda GX390 13HP |
Transmission  | Piston pump | Piston pump | Piston pump | Piston pump | Piston pump |
Loading weight kg(lb) | 800(1762) | 800(1762) | 800(1762) | 800(1762) | 800(1762) |
Drum material | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray | Plastic-spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
