BY600L

600L (6)_777.jpg

BY600 Serial

BY600BY600-6BY600LBY600SBY600W

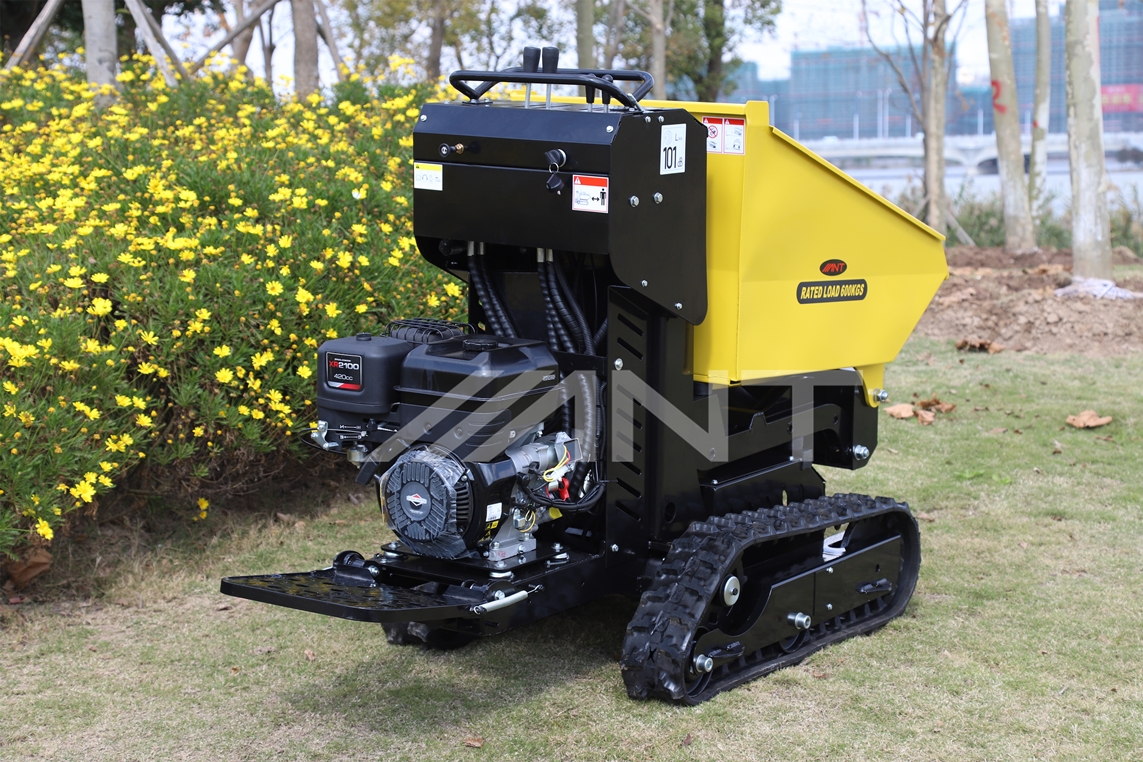

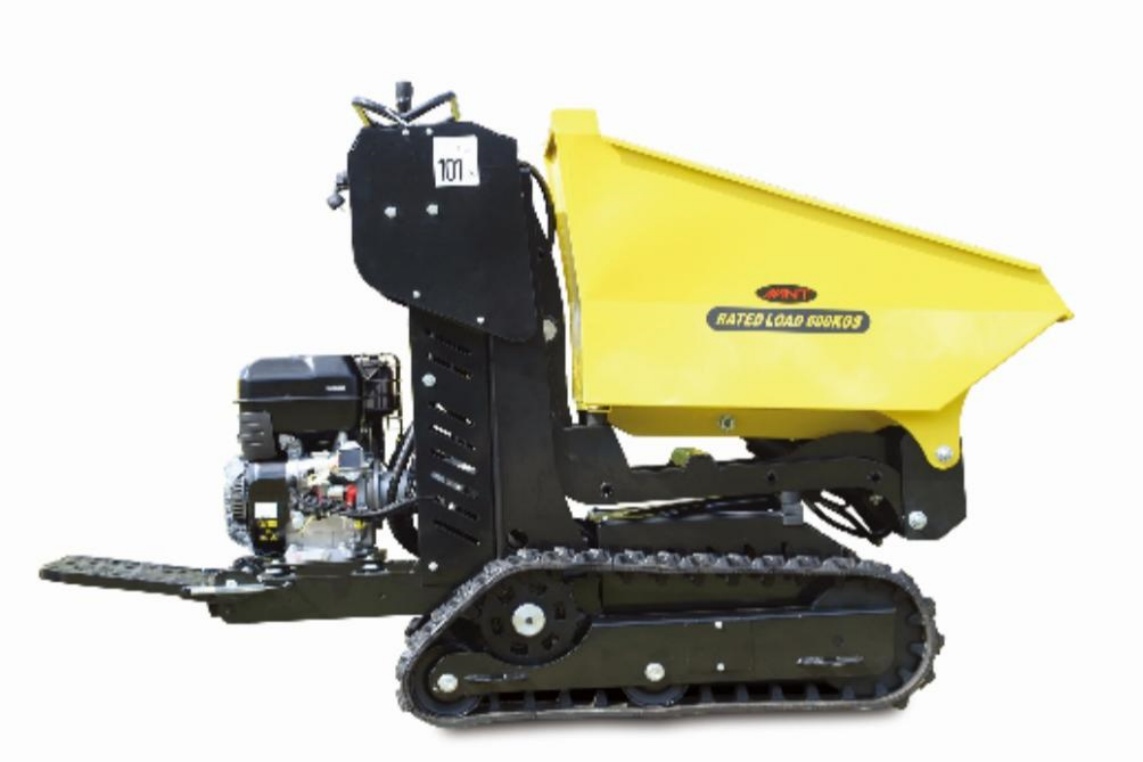

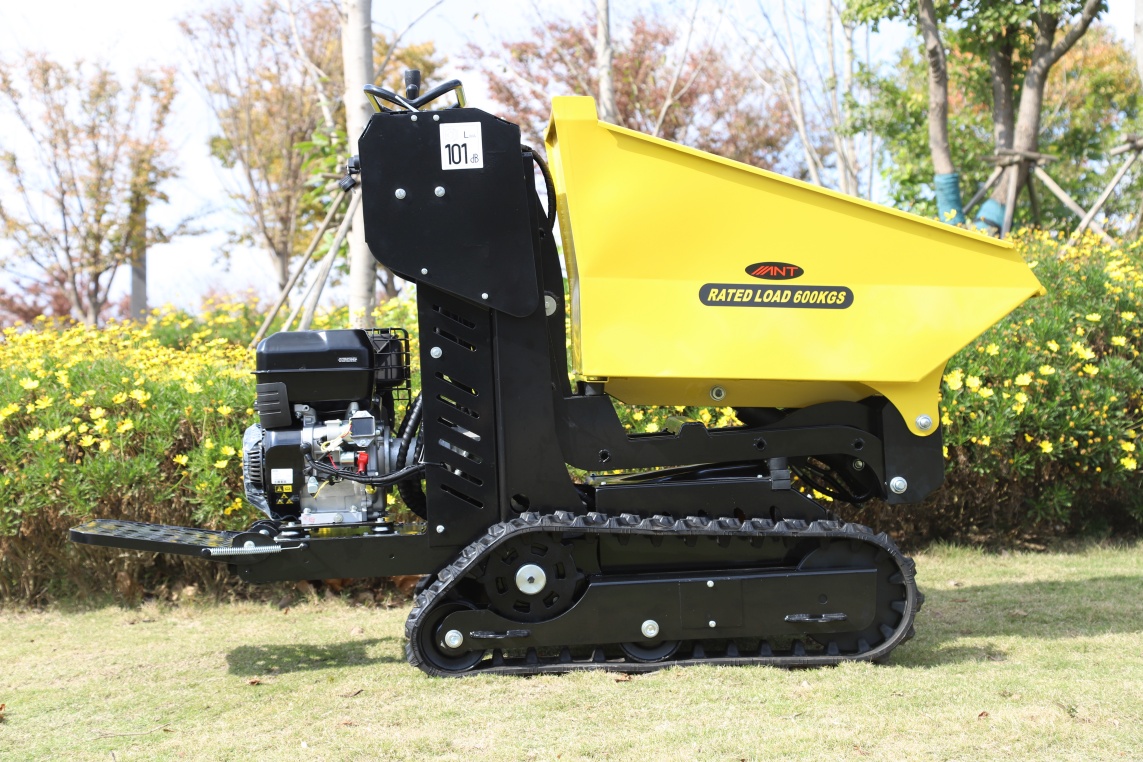

With the 60 series it is possible to safely carry 600kg; Incredibly robust, beautiful to look at, and above all very reliable. The shape of this tracked conveyor is just one of its peculiarities,in fact under the guise it conceals a compact frame and highly resistant to the hardest work, a well-designed undercarriage to channel mud and soil materials to the outside of the machine, the lifting body and a compactness of the machine that allows the passage inside the doors of the house.

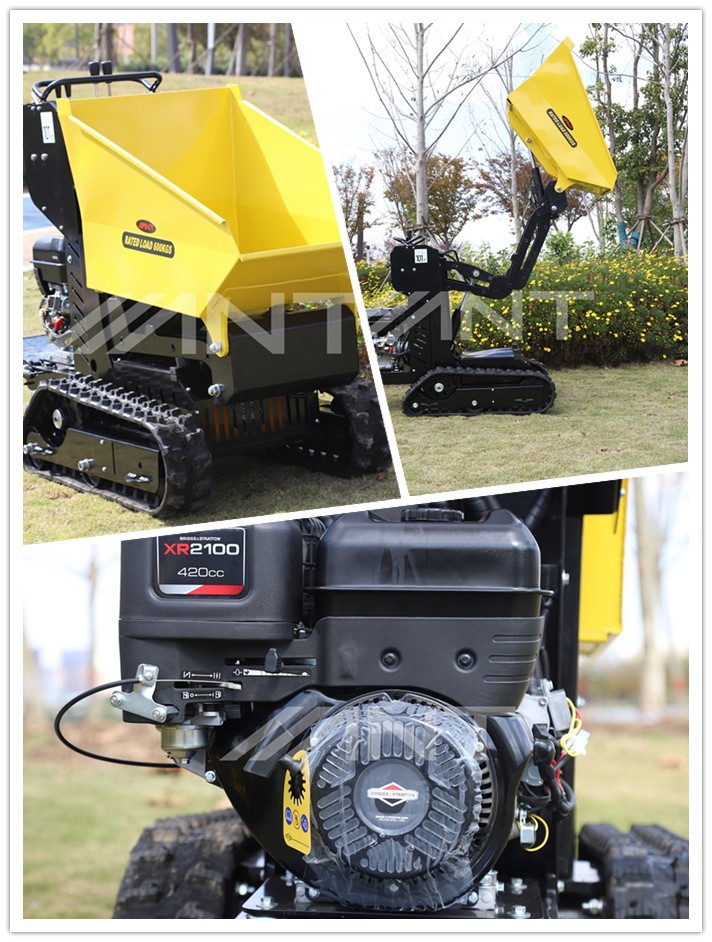

In action! Photos and Videos

Details


image.png                                        image.png                    image.png
PULL THE PLATE                    SPROCKET                    CYLINDER                    FORWARD AND
   BACKWARD FILES

Operation Pictures



Technical Data Sheet

  DescriptionBY600BY600-6BY600LBY600SBY600W
  Weight kg(lb)                400(882)  320(145)  538(1186)  285(628)  489(1078)
  Dimension mm(in)        2460*900*1480  2050*1150*1350  1900*850*1300  2050*750*1300  1900*850*1480
  Engine                          Honda GX390 13.5HP  Honda GX200 6.5HP  Honda GX390 13.5HP  Honda GX390 13.5HP  Honda GX390 13.5HP
  Transmission                Hydraulic transmission   Hydraulic transmission   Hydraulic transmission   Hydraulic transmission   Hydraulic transmission

  Loading weight kg(lb)

  600(1322)  600(1322)  600(1322)  600(1322)  600(1322)
  Drum material              Plastic-spray  Plastic-spray  Plastic-spray  Plastic-spray  Plastic-spray



We reserve the right to improve or withdraw the specification or products without prior notice.
