GX200

      Features
         . Honda OHV Commercial-grade engine
         . Horizontal shaft
         . Electronic ignition/Oil Alert
         . EPA/CARB compliant
         . 2 Year Commercial Warranty

      Applications:
           Air compressors, Generators, Pumps
           Pressure washers, Reel-type lawn mowers, Go-

           Karts, Agricultural equipment,
           Chipper/Shredders, Small construction equipment,

           Concrete saws.

 Specifications GX200 6.5HP
 Engine Type Air-cooled, 4-  Stroke, OHV, single cylinder
 Bore x Stroke 68 x 54 mm (2.7 x 2.1 in)
 Displacement 196 cm3 (12.0 cu in)
 Compression Ratio 8.5 : 1

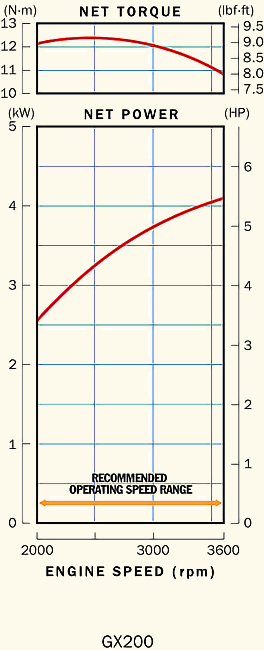

 Net Horse Power Output* 4.1kW (5.5HP) at 3,600 rpm
 Net Torque 12.4 Nm (9.1 lbs ft) at 2,500 rpm
 PTO Shaft Rotation Counterclockwise
 (from PTO shaft side)
 Ignition System Transistorized magneto ignition
 Starting System Recoil or Electric Starter
 Carburetor Horizontal type butterfly valve
 Lubrication System Forced Splash
 Governor System Centrifugal Mechanical
 Air Cleaner Dual Element Type (opt Cyclone type)
 Oil Capacity 0.6l (0.63 US qt, 0.53 Imp qt)
 Fuel Tank Capacity (liter) 3.1l (3.3 US qt)
 Dimensions (L x W x H) 321mm (12.6 in) x 376mm (14.8 in)
 x 335mm (13.2 in)
 Dry Weight 16.0 kg (35.3 lbs)
 * The power rating of the engine indicated in this document is the net
 power output tested on a production engine for the engine model and
 measured in accordance with SAE J1349 at 3600 rpm (7000 rpm for
 model GHX50). Mass production engines may vary from this value.
 Actual power output for the engine installed in the final machine will
 vary depending on numerous factors, including the operating speed
 of the engine in application, environmental conditions, maintenance
 and other variables.



We reserve the right to improve or withdraw the specification or products without prior notice.
